What does the Manifold Absolute Pressure Sensor do?

The sensor provides instant manifold pressure information to the engine’s electronic control unit. The data is used to calculate air density and determine the engine’s air mass flow rate, which in turn determines the required fuel delivery for perfect combustion.

Where is the Manifold Absolute Pressure Sensor Located?

The MAP sensor is typically located on the intake manifold, either next to or on the throttle body itself. (On a forced-induction engine, the MAP sensor can be found on the intake tract before the turbo.

Will a malfunctioning Manifold Absolute Pressure Sensor cause a check engine light?

Signs of a Broken MAP Sensor. MAP sensor problems could trigger a DTC and check engine light.

What are the common causes of failure?

MAP sensors fail by getting clogged, contaminated, or damaged. Sometimes, engine heat “overcooks” the MAP sensor’s electronics or cracks vacuum lines.

How to determine if a Manifold Absolute Pressure Sensor is failing?

• Excessive fuel consumption. A MAP sensor that measures high intake manifold pressure indicates high engine load to the PCM.
• Lack of power. A MAP sensor that measures low intake manifold pressure indicates low engine load to the PCM.
• Failed emissions test.

What makes Holstein Parts Manifold Absolute Pressure Sensor the Best:

• Holstein Parts uses only the highest quality materials and engineering for parts that are truly built to match or exceed the OE part
• Holstein Parts MAP sensors offer superior coverage for domestic and import applications
• 3 Year / 36,000 Mile Warranty on all Holstein Parts MAP sensors

Product Spotlight

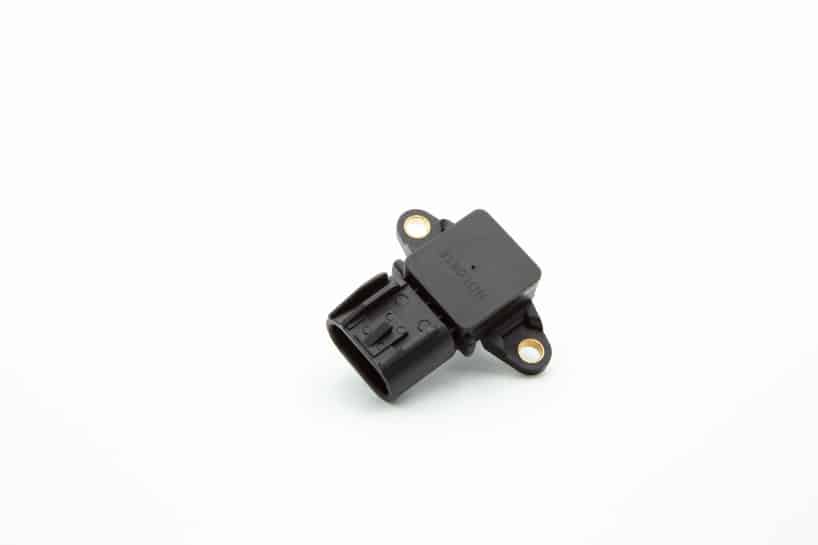

• Holstein Parts Manifold Absolute Pressure Sensor (MAP sensor) offers superior coverage for domestic and import applications
• Holstein Parts uses only the highest quality materials, manufactured to exacting standards to provide long term function and performance
• Sealed Anti-Static Protective Packaging ensures that electrical components are not damaged during shipping
